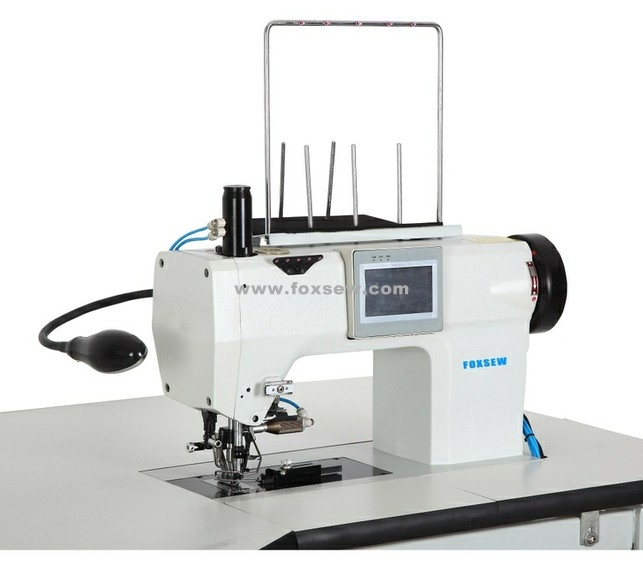

Intelligent Hand Stitch Sewing Machine

  • Product Name:  Intelligent Hand Stitch Sewing Machine
  • Model NO.:  FX-799
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Intelligent Hand Stitch Sewing Machine

FOXSEW Computerized Hand Stitch Sewing Machine

Working Video-1: www.foxsew.com/company-video/computer-hand-stitch-machine-for-suits-1606.html

Working Video-2: www.foxsew.com/company-video/computer-hand-stitch-machine-342.html

Working Video-3: www.foxsew.com/company-video/computer-hand-stitch-sewing-machine-231.html

Working Video-4: www.foxsew.com/company-video/computer-hand-stitch-sewing-machine-352.html

Working Video-5: www.foxsew.com/company-video/computerized-hand-stitch-machine-344.html

Working Video-6: www.foxsew.com/company-video/computerized-hand-stitch-sewing-machine-232.html

Features: The machine is equipped with 4.3 inch full-touch color screen and computerized digital operating system, which makes the machine more easy to handle and more beautiful

Controlled by coder and integrated with servo control system, the step motor not only makes mechanism and system to be more complementary, but it also makes the sewing performance more stable and contributes to more neat stitches and more accurate needle gauges. The machine has independently pneumatic lifter of presser foot and knee lifter of presser foot, auto-trimming function and manual-trimming function. It has half needle adjustment button, positive and negative pin-point shift button by foot, unique pattern-connecting function, bar tacking function, thread loosening function and many kinds of pattern sewing functions.
By producing spare parts made from titanium alloy, the machine becomes more durable, The sound is lighter and sewing performances are more stable.

Specifications:

Model

FX-799

Sewing Speed

420-500 stitches/min

Stitch Length

0.5-6mm

Stitch Form

1 stitch,1 thread, (real hand stitch)

Thread Specification

Common thread

Thread Length

90 cm

Needle Type No.

780C Size: 16# 18# 20# 23#

Presser bar Lifting

8mm Pneumatic Lifting

Lubrication Oil

Spindle Oil

Appearance Size

128x96x86 cm

Weight

170 Kgs

Power

220V 50HZ/380V

Motor Power

0.55 KW

Air Pressure

0.6Mpa
