- Product Name: Extra Heavy Duty Post Bed Triple Feed Upholstery Sewing Machine
- Model NO.: FX243-2A
- Origin: Zhejiang,China
- Packing: Cartons
- Brand Name: FOXSEW
-
Product Details: Extra Heavy Duty Post Bed Triple Feed Upholstery Sewing Machine
FOXSEW Extra Heavy Duty Post Bed Triple Feed Upholstery Sewing Machine
Applications: for assemble and decorative topstitching luxurious leather sofas, fabric sofas, armchair, couch lounge, chair, car seat covers, furniture, shoes, saddles, leather crafts, automotive upholstery, marine upholstery, aerospace upholstery, leather bags and other high-end leather goods.
Working Video 1: www.foxsew.com/company-video/double-needle-post-bed-walking-foot-leather-sewing-machine-394.html
Working Video 2: www.foxsew.com/company-video/extra-heavy-duty-post-bed-triple-feed-upholstery-sewing-machine-369.html
Features: The Durkopp Adler 204 type extra large barrel shuttle is specially designed for processing the extreme thick thread (1.4mm braided thread) and heavy weight materials; Triple feed mechanism ensures constantly tight stitch formation, even with large stitch length; High needle penetration power and excellent climbing capacity guarantee easy sewing thick spots or cross seams (over transversal seams), without skipped stitch, loose bottom thread, shorten stitch length, bobbin thread Knots and Tangles; The sewing foot stroke up to 10 mm allows the safe climbing over differently high material plies; Pneumatic additional thread tension for excellent stitch formation when sewing over thick spots or overlapping seams; Up to 13 mm long stitches for decorative topstitching seams; Thread puller is available for even thread tension.
Specifications:
Model No.: | FX243-2A |
Max.Sewing Speed | 600 r.p.m |
Stitch Length | 14 mm |
Needle Bar Sroke | 56 mm |
Presser foot lift | 28 mm |
Needle | DYx3 27# |
Needle Gauge | 10-12 mm |
Post bed Height | 185 mm |
Lubricant | Manual |
Motor | 220V, 550W |
Operating Space | 420x335 mm |
-

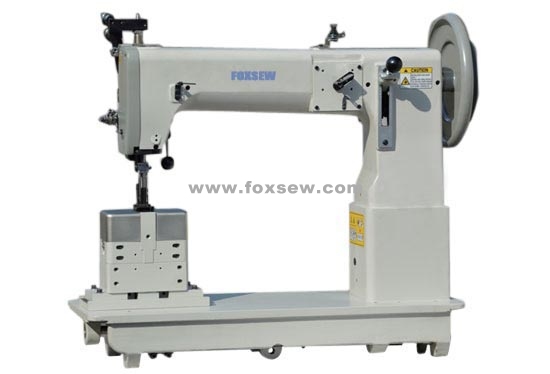

Product Images: Extra Heavy Duty Post Bed Triple Feed Upholstery Sewing Machine
-
