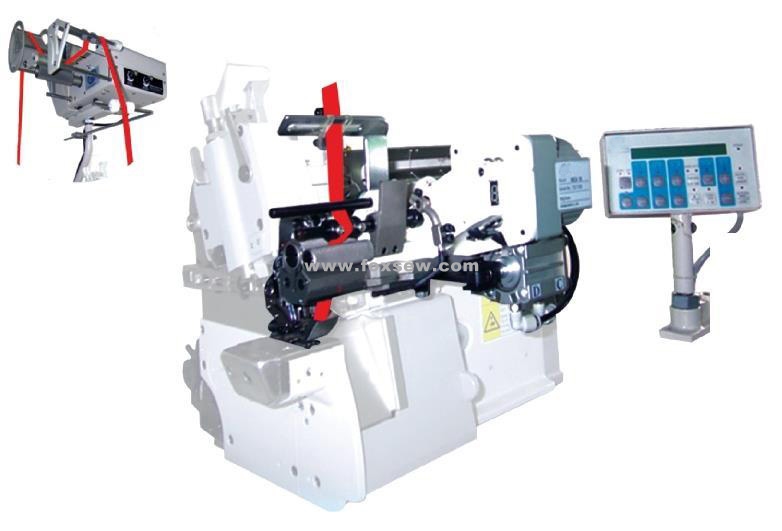

Computerized Metering Device for Overlcok Machine

  • Product Name:  Computerized Metering Device for Overlcok Machine
  • Model NO.:  MCA18K
  • Origin:  Zhejiang, China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Product Details:  Computerized Metering Device for Overlcok Machine

FOXSEW Automatic Metering Device for Overlock Sewing Machine

Working Video 1: www.foxsew.com/company-video/computerized-metering-device-for-overlcok-machine-247.html

Working Video 2: www.foxsew.com/company-video/overlock-machine-computerized-metering-device-254.html

Auto-cutting and re-insert. It can reach different sewing purpose by powerful multi-function with 27 program memory.

With cutting device

It is made for any elastic attaching sewing, special for connecting the circle sewing. During the sewing operation, it can auto cut the tape fast in front of the presser foot for covering sewing to make the flat and beautiful sewing. In the beginning and after finishing sewing, the presser foot will be lifted automatically. And the elastic will be re-inserted into the presser foot for the next sewing operation.

Parts description:

Auto cut & re-insert

For connecting the circle sewing, during the operation, it can automatically cut the tape fast in front of the presser foot to make it flat and beautiful. In the beginning and after finishing sewing, the presser foot will be lifted automatically. And the elastic will be re-inserted to presser foot to stand by.

Synchronizer

The synchronizer is installed in the belt pulley. It’s used for stitch counting and section changing.

Manual section changing display

LED digital display shows the current section and manual section changing controller allows operator change different section by finger.

Cutting switch device

Cutting switch is fixed under the operation table. Operator could click cutting switch by knee when the elastic needs to be cut.

Presser foot-lifting switch

In the beginning and after finishing sewing, presser foot would be lift by pressing pedal backward.

Movable bracket

This bracket could be adjusted to best situation and makes metering device easy maintaining.

Computerized metering device MCA18K

MCA18K - 38

MCA18K - 64

MCA18: Micro-computerized auxiliary device, with 18 different sections and 27 memory program

K: For Overlock sewing machine only

38/64: Max feeding width

JUKI, PEGASUS, BROTHER, YAMATO, KINGTEX, SIRUBA

Specification:

Product Name

Computerized Metering Device

Model No.

MCA18K

Memory Program

18 Sections, 27 Memory Program

Operation System

Programmable Logic Controller System

Feed Length Adjusting

1-99

Stitch Counting

Blank or 1-999

Base Mounted Way

Mounted on Overlock Sewing Machine

Max. Speed

5500 r.p.m

Max. Width

38 mm

Power Supply

AC 220V 50HZ

Standard Parts

Synchronizer, Manual Section Changing Display, Cutting Switch Device, Presser Foot-lifting switch

Optional Parts

Thread-Releasing Device

Sewing Machine Brand

JUKI, BROTHER, PEGASUS, YAMATO, SIRUBA, KINGTEX
