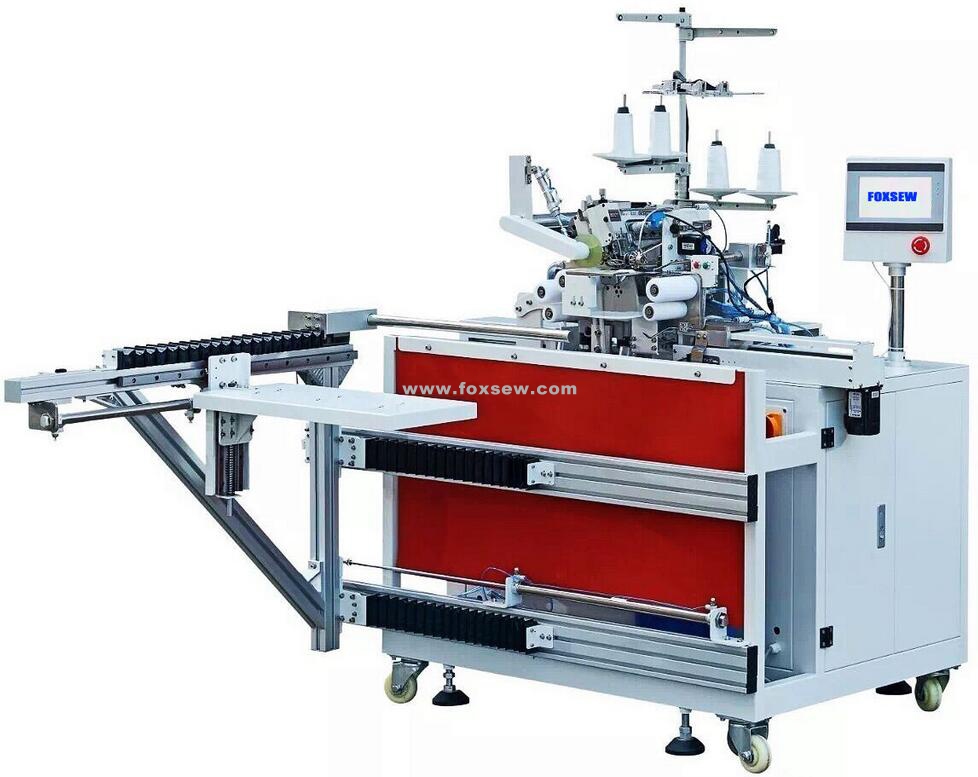

Automatic Rib Knit Waistband Setting Station

  • Product Name:  Automatic Rib Knit Waistband Setting Station
  • Model NO.:  FX-AT343
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Rib Knit Waistband Setting Station

FOXSEW Automatic Rib Knit Bottom Band Setting Station, Automatic Rib Knit Waistband Attaching Sewing Machine Unit
Shirt and band may be tubular or with side seams

Working Video-1: www.foxsew.com/company-video/automatic-rib-knit-band-setting-station-1449.html

Working Video-2: www.foxsew.com/company-video/automatic-rib-knit-bottom-bands-setter-station-1455.html

DC electronic motor and microprocessor controls, Tandem operation, Reduces ergonomic risk, Minimizes fabric waste, Uniform gathering, Dual electronic active edge guiding system, Automatic stacking, Increased production, Piece counter.

The operator folds the circular rib knit piece in half to form a band and places it over the expansion guide rollers, The rollers automatically expand for loading the body, The body is loaded over the rollers and band and a touch of the start sensor expands the rollers to sew position and indexes the parts under the presser foot and sew cycle begins. The operator is free to load a second machine. When the finished seam is sensed, the parts are oversewn a predetermined distance, thread chain is cut, and the part is automatically stacked.

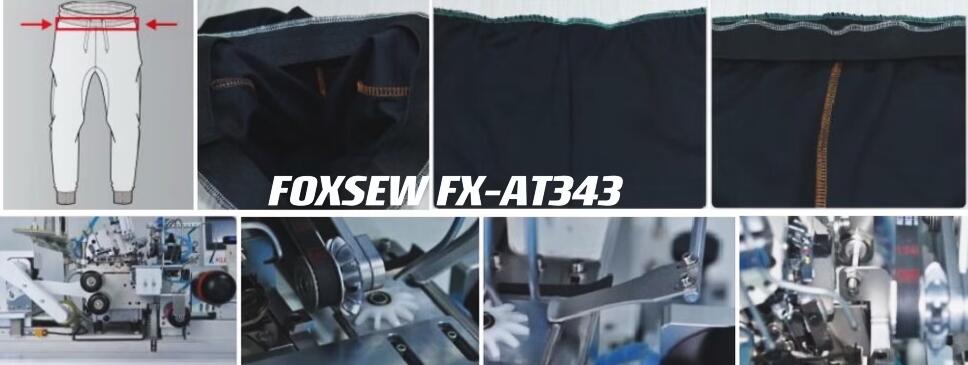

An automatic workstation for sewing circular rib knit bottom bands on sweatshirts. This unit incorporates a cylinder arm overlock sewing head with vacuum thread trimmer, electronic controls, dual electronic active edge guiding system for band and body, and pneumatic expansion rollers with automatic stacker.

Automatic sewing elastic rib band and waistband, Automatic size control, Edge guiding devices secure perfect alignment,

Auto start-stop according tothe position of side seam, The threads are trimmed automatically when sewingi s tinished, Automatic waste collectina device.

Rib knit elastci bands hemming (light knitted fabric), Elastic Waistband Setting.

Specifications:

Model NO.:  FOXSEW FX-AT343
Air Presser:  6kgs
Voltage:   110/220V, 50/60HZ
Gas Consumption:  150L/ Min
Size Range:  Stretchable diameter 20cm-51cm, Rib Knit Elastic Bands width: 1-5cm
Production Capacity:  180-200 pcs per hour
Packing Size:  140x120x160cm
