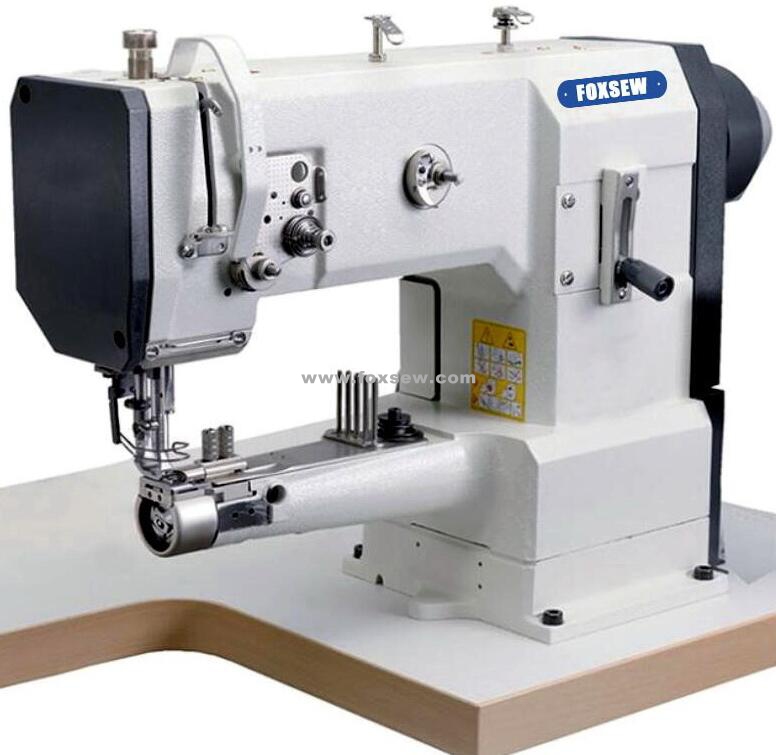

Cylinder Bed Walking Foot Heavy Duty Sewing Machine

  • Product Name:  Cylinder Bed Walking Foot Heavy Duty Sewing Machine
  • Model NO.:  FX-335
  • Origin:  Zhejiang, China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Product Details:  Cylinder Bed Walking Foot Heavy Duty Sewing Machine

Cylinder Bed, Walking Foot, Single Needle, Heavy Duty Sewing Machine for Shoes Industry and Handcrafted products, Leather upholstery.

FOXSEW FX-335 is an universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes, etc. Working on tubular or pre-attached articles and standard sewing work on leather wear, bags and leathercraft articles.

Applications: leather accessories, leatherwear, upholstery and shoes. Suitable for working on tubular or pre-attached articles, Standard sewing work on leatherware, bags and leather crafts, Binding of shoes and leatherware with leather, imitation leather or textile tape, Piping work on bags, suitcases and upholstery.

Suitable for working on tubular or pre-attached articles:

1. Standard sewing work on leatherware, bags and leather crafts.
2. Binding of shoes, bags and leatherware with leather, imitation leather or textile tape.
3. Piping work on bags, suitcases and upholstery.
4. Decorative stitching in small leather goods.
Features:
Cylinder-bed machine for working on tubular or pre-attached articles
Very good feeding properties due to the unison feed
Excellent sewing quality with high perfomance and sewing reliability
Precise and consistent stitch setting at large spectrum of materials/fabrics
Fewer bobbin changes due to the large hook (40% more bobbin capacity than standard hook)
Rugged and durable machine construction - Easy to maintain machine concept
The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams
Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Distance of the front edge of the cylinder arm to the needle: 9 mm - Cylinder arm diameter: 51 mm
Original FOXSEW Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy.
Options:
Backtacking system
Thread trimmer
Automatic presser foot lift
Applications: Universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes, etc. Working on tubular or pre-attached articles and standard sewing work on leather wear, bags and leathercraft articless.
Specifications:
Model NO.:  FX-335
Max. Sewing Speed:  2800 r.p.m
Presser Foot Lift:  14 mm
Needle System:  134--35 LR
Needle Bar Stroke:  33.5mm
Stitch Length:  0-6mm
Packing Size:  63x28x60 cm
Weight:   45KGS
